Vixen Telescope Smartphone Camera Adapter
Description
Take Astrophotography Images with Your Smart Phone Easily

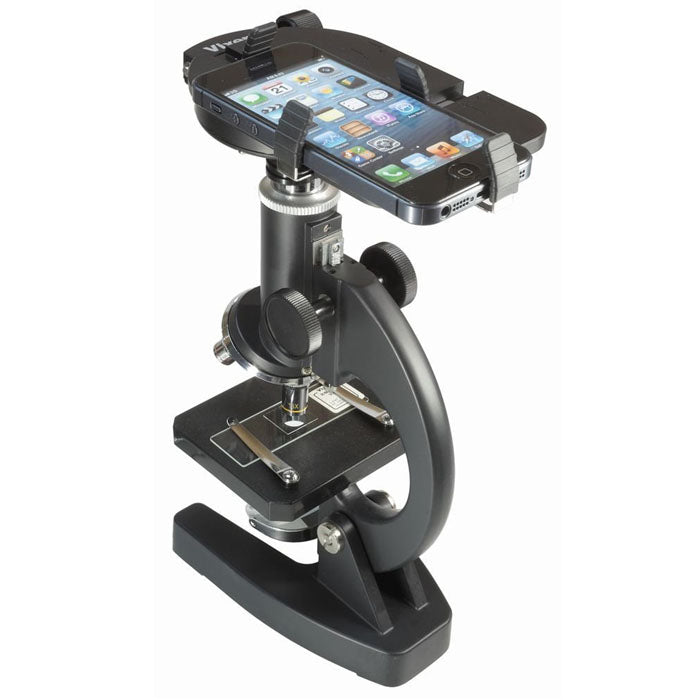

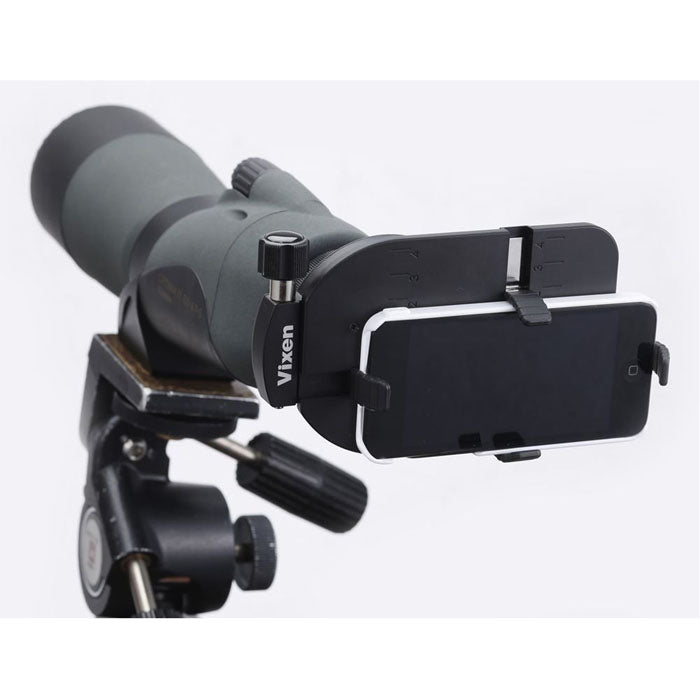

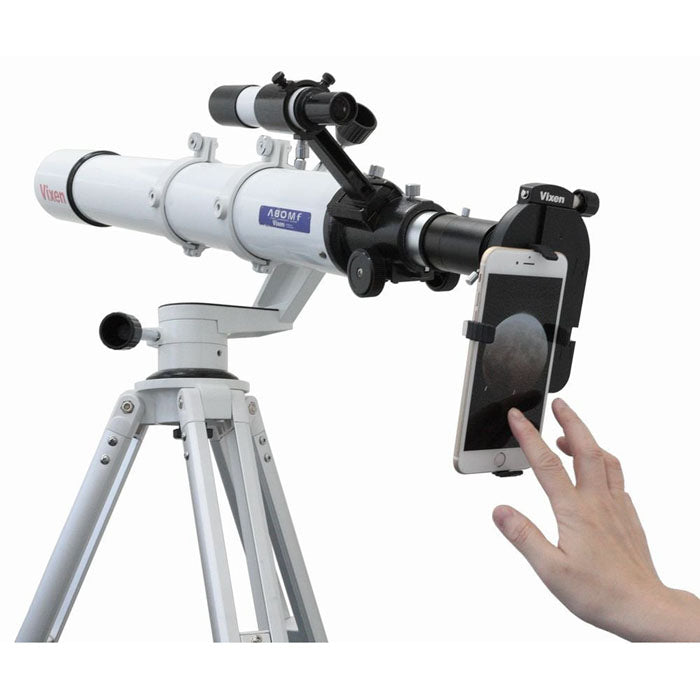

Attach your camera to your telescope with this adapter to take astrophotography images. Some feature phone could also be used if meet the conditions of conformity. Attach your camera to telescope to take astrophotograph images of Moon and Planet, to microscope to do micro photography, to spotting scope to enjoy taking photographs of birds, etc.
Normally when taking photography by smartphone, we align the optical axis by moving the smartphone's camera lens closer to the telescope's ocular lens, but it will be very difficult to take the photography while keeping the optical axis aligned. By using this Smartphone Camera Adapter, we can take photography while keeping the optical axis to be aligned, makes the photographing to be a very easy one.
The adapter is also attachable flexibly to the telescope, microscope etc., which has cylindrical type ocular lens.
Specs

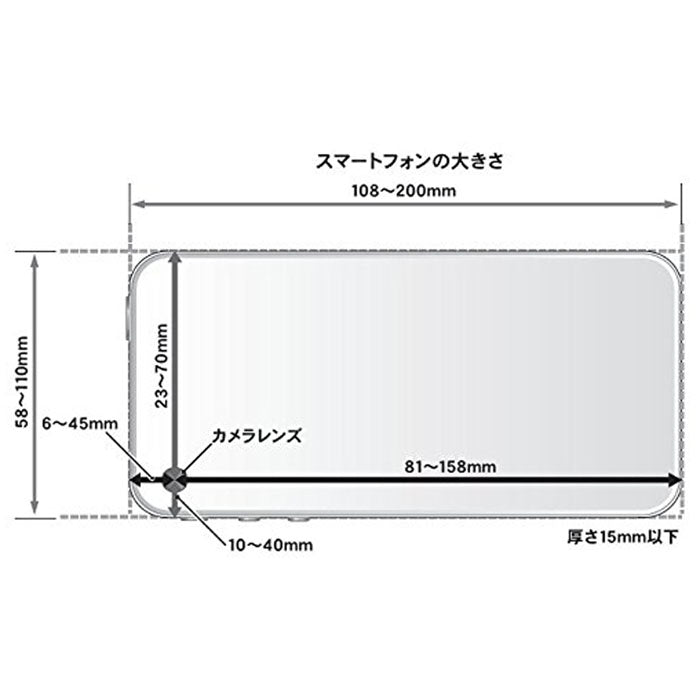

| Smartphone Size | Smartphones between 58mm and 110m in width (minor axis length) and between 4.25" (108mm) and 7.8" (200mm) in height (major axis length) can be attached with this adapter; The smart phone must have a thickness of less than .6" (15mm); (When you face the camera lens to the front, the distance from the smartphone's camera lens center) to the left end of the smartphone is between 10～40mm、to the right end of the smartphone is between 23～70mm, to the upper end of the smartphone is between 6～45mm、to the lower end of the smartphone is between 81～158mm. |

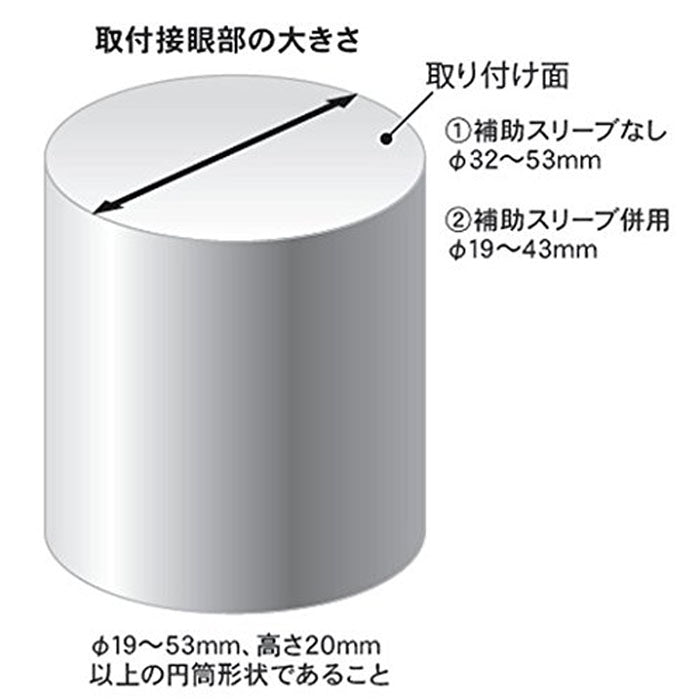

| Attachable (ocular side) size and shape | cylindrical typeφ19～53mm、Height more than 20mm ※Telescope, microscope, spotting scope etc. |
| Loading Capacity | 300g |
| Size | 149×90×56mm |
| Weight | 178g |
Warranty
Vixen warranties its products to be free from initial defects in materials and workmanship for a specified period based on part type:
Vixen Electronic Parts: Limited One Year Warranty
Vixen Mechanical Parts: Limited Two Year Warranty
